A Complete Guide to MS, DI and HDPE Pipeline Laying Works
Reliable water infrastructure depends on properly designed, professionally installed, and thoroughly tested pipeline networks.
Pipeline laying is a specialized infrastructure activity that involves engineering, route surveying, excavation, pipe handling, jointing, installation, testing, protection, backfilling, and surface restoration. Every stage of construction needs to be carefully planned and coordinated to achieve a safe, durable, and reliable pipeline system.
Modern water supply projects may involve different types of pipelines depending on their application and operating requirements. Large-diameter Mild Steel (MS) pipelines are commonly used for high-capacity water transmission and pumping systems, while Ductile Iron (DI) pipelines are widely used for transmission and distribution networks.
HDPE pipelines are also used for suitable water supply applications because of their flexibility, corrosion resistance, lightweight construction, and fusion-based jointing systems.
A complete pipeline infrastructure project may extend well beyond pipe installation. Excavation, bedding, valve chambers, pump houses, road restoration, RCC structures, pond outlet structures, fencing, drainage works, and other associated civil construction activities can form an important part of the overall project scope.
This comprehensive guide explains the major pipeline laying and associated civil infrastructure activities involved in modern water supply projects.
==================================================

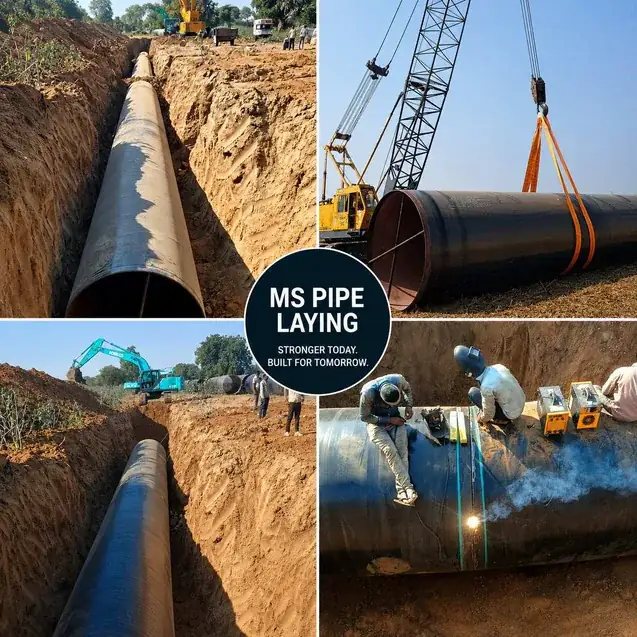

1. MS PIPELINE LAYING WORKS
==================================================
Mild Steel pipelines are widely used for high-capacity water transmission, pumping mains, trunk mains, and major bulk water supply infrastructure.
MS pipeline installation requires careful coordination between surveying, excavation, transportation, lifting, positioning, welding, inspection, testing, backfilling, and surface restoration.
A typical MS pipeline installation process includes:
Large-diameter MS pipes require specialized lifting equipment, trained personnel, certified welders, appropriate welding procedures, and strict safety controls.
Proper execution is particularly important where the pipeline forms part of a major bulk water transmission or pumping system.
==================================================
2. LARGE-DIAMETER MS PIPELINE INSTALLATION
==================================================
Large-diameter pipeline installation requires detailed planning because of the considerable size and weight of the pipes involved.
Transportation, unloading, lifting, positioning, alignment, welding, inspection, and testing need to be carefully organized to maintain construction quality and site safety.
Typical installation activities may include:
Large-diameter MS pipelines are commonly associated with high-capacity water transmission systems.
Proper execution is particularly important because pipeline performance can directly affect the reliability of the overall water supply system.
==================================================
3. MS PIPE FIELD WELDING
==================================================
Field welding is one of the most important activities in MS pipeline construction.
The quality of welded joints can have a direct impact on pipeline integrity and long-term performance. Therefore, welding procedures, inspection, testing, and documentation need to be properly controlled.
Professional welding operations typically include:
Welding should be carried out by qualified or certified welders using approved welding procedures and project-specific specifications.
Proper documentation also helps maintain traceability and quality records throughout the pipeline construction process.
==================================================
4. DUCTILE IRON (DI) PIPELINE LAYING
==================================================
Ductile Iron pipelines are widely used for water transmission and distribution networks because of their strength, durability, and suitability for pressurized water systems.
DI pipeline installation requires proper control of excavation, bedding, pipe handling, jointing, fittings, valves, testing, and backfilling.
DI pipeline installation generally includes:
DI pipelines may be installed in various ground conditions, including sandy, clayey, rocky, and mixed soil conditions.
The construction methodology should therefore be planned according to the actual site conditions and approved project requirements.
==================================================
5. DI PIPELINE INSTALLATION IN DIFFICULT SOIL CONDITIONS
==================================================
Pipeline construction can become more challenging when the pipeline route passes through unstable, loose, sandy, or difficult ground conditions.
Such conditions may affect trench stability, excavation productivity, pipe positioning, groundwater management, and overall construction safety.
Potential challenges may include:
Effective planning, appropriate trench safety measures, controlled excavation, suitable bedding, and an appropriate construction methodology are essential for safe and successful pipeline installation.
==================================================
6. HDPE PIPELINE LAYING
==================================================
High-Density Polyethylene (HDPE) pipelines are widely used for suitable water supply applications because of their flexibility, corrosion resistance, lightweight construction, and leak-resistant jointing systems.
HDPE pipelines can be particularly useful where flexibility and corrosion resistance are important considerations.
HDPE pipeline installation generally includes:
The installation method should be selected according to project requirements, site conditions, pipe specifications, and approved construction procedures.
==================================================
7. HDPE BUTT FUSION JOINTING
==================================================
Butt fusion is a widely used method for joining HDPE pipes.
The process involves preparing, heating, aligning, and joining the pipe ends under controlled conditions to produce a continuous fused connection.
The process generally involves:
1. Pipe-end preparation
2. Cleaning and alignment
3. Heating of pipe ends
4. Controlled joining
5. Cooling under controlled pressure
6. Visual inspection
7. Joint documentation
Proper temperature, pressure, alignment, heating time, and cooling time are important for achieving reliable fusion joints.
The equipment and operating procedures should be appropriate for the pipe and project requirements.
==================================================
8. HDPE ELECTROFUSION JOINTING
==================================================
Electrofusion is another method used for joining HDPE pipes and fittings.
The process uses specialized electrofusion fittings containing embedded electrical heating elements to create the connection between the pipe and fitting.
Typical electrofusion activities include:
Correct equipment, proper preparation, accurate alignment, and appropriate operating parameters are essential for dependable electrofusion joints.
==================================================
9. PIPELINE TRENCH EXCAVATION
==================================================
Trench excavation forms the foundation of underground pipeline installation.
The trench must be prepared according to the required pipeline route, depth, width, soil conditions, approved drawings, and project specifications.
Excavation activities may include:
Excavation must be carried out according to approved drawings, specifications, and actual site conditions.
Existing utilities and surrounding infrastructure must also be considered during excavation.
==================================================
10. PIPELINE BEDDING PREPARATION
==================================================
Proper bedding provides continuous and stable support beneath the pipeline.
A properly prepared bedding layer helps maintain pipeline alignment and reduces the possibility of point loading or instability.
Depending on project requirements and soil conditions, bedding may involve:
Correct bedding contributes to pipeline stability and helps maintain the required installation levels and alignment.
==================================================
11. PIPE STRINGING AND HANDLING
==================================================
Pipe handling requires careful planning to prevent damage to the pipe surface, coating, joints, and fittings.
This becomes particularly important when handling large-diameter and heavy MS pipes.
Typical pipe-handling operations include:
Large-diameter MS pipes require particular attention because of their weight and handling requirements.
Proper lifting and handling practices help protect the pipe before it reaches its final installed position.
==================================================
12. PIPELINE ALIGNMENT AND LEVEL CHECKING
==================================================
Pipeline alignment directly affects installation quality and the ability to construct the pipeline according to the approved design.
Accurate surveying and level checking are therefore essential throughout pipeline installation.
Surveying and checking activities may include:
Survey equipment and approved reference points should be used to verify the pipeline installation.
Accurate alignment and level control help reduce construction errors and maintain consistency with approved drawings.
==================================================
13. PIPELINE PRESSURE TESTING
==================================================
Pressure testing is an important quality-control activity for pressurized water pipelines.
Testing provides an opportunity to assess the completed pipeline section according to the requirements specified for the project.
Depending on pipe material and project requirements, testing may include:
Testing requirements should always follow the approved project specifications and applicable standards.
==================================================
14. PIPELINE BACKFILLING AND COMPACTION
==================================================
After successful inspection and testing, pipeline trenches are backfilled.
Backfilling must be undertaken carefully to protect the installed pipeline and provide appropriate support to the surrounding ground.
Backfilling generally includes:
Proper compaction helps protect the pipeline and minimize future ground settlement.
This becomes particularly important where pipelines pass beneath roads, developed areas, or other infrastructure.
==================================================
ASSOCIATED CIVIL INFRASTRUCTURE WORKS
==================================================
Pipeline projects are not limited to pipe installation.
Major water infrastructure projects often require extensive civil works and supporting structures to complete the overall system.
These supporting works may include:
Integration between pipeline and civil construction activities is important for efficient project execution.
==================================================
15. VALVE CHAMBER CONSTRUCTION
==================================================
Valve chambers provide access to important pipeline valves and associated fittings.
They are important supporting structures within many water transmission and distribution systems.
Valve chamber construction may include:
Proper construction of the chamber provides a suitable and accessible enclosure for the installed valve arrangements.
==================================================
16. THRUST BLOCK AND ANCHOR WORKS
==================================================
Thrust blocks and anchoring arrangements may be required at bends, tees, reducers, valves, and other pipeline locations where hydraulic forces need to be controlled.
These structures provide necessary support according to the approved engineering design.
Construction may involve:
Design and construction should follow approved engineering requirements and project-specific specifications.
==================================================
17. PUMP HOUSE CONSTRUCTION
==================================================
Pump houses are important components of pressurized water transmission systems.
They provide the structural environment for pumping equipment and associated pipeline connections.
Typical pump house works may include:
Successful pump house construction requires coordination between civil, structural, mechanical, pipeline, and associated project activities.
==================================================
18. POND OUTLET STRUCTURE
==================================================
Water infrastructure projects may require pond outlet structures for controlled water withdrawal and connection to transmission systems.
These structures need to be constructed according to approved designs and project requirements.
Associated works can include:
The structure should be properly integrated with the connected pipeline system and surrounding civil infrastructure.
==================================================
19. RCC STRUCTURES
==================================================
Reinforced Cement Concrete works may be required throughout pipeline infrastructure projects.
RCC structures can provide structural support for chambers, foundations, equipment, pipe supports, drainage structures, and other infrastructure components.
Common RCC activities include:
Quality control may include reinforcement inspection, concrete quality checks, formwork inspection, curing, and dimensional verification.
==================================================
20. PCC WORKS
==================================================
Plain Cement Concrete is commonly used to provide a stable and prepared base for subsequent construction activities.
PCC can form part of foundations, chambers, pump houses, equipment bases, and other supporting infrastructure.
PCC applications may include:
Proper PCC preparation provides a suitable base for subsequent construction activities.
==================================================
21. RCC ROAD AND CC ROAD WORKS
==================================================
Pipeline projects frequently require road construction or restoration after underground pipeline installation.
Existing roads may need to be reinstated following trench excavation and pipeline construction.
Road-related works may include:
Proper road restoration helps maintain road functionality after pipeline construction and reduces disruption to existing transportation infrastructure.
==================================================
22. ROAD CUTTING AND RESTORATION
==================================================
Pipeline routes often cross existing roads, making controlled road cutting and restoration an important part of pipeline construction.
The construction team must coordinate excavation, pipeline installation, backfilling, compaction, and pavement restoration.
The work may involve:
Road restoration should meet the requirements of the concerned authority and applicable project specifications.
==================================================
23. WIRE FENCING AND RCC WALL WORKS
==================================================
Pipeline infrastructure may require protection and boundary arrangements around important structures.
These arrangements can be particularly useful around pumping stations, chambers, reservoirs, and other infrastructure assets.
Such works can include:
These works help secure important infrastructure assets and establish appropriate boundaries around project facilities.
==================================================
QUALITY CONTROL IN PIPELINE CONSTRUCTION
==================================================
Quality control is essential at every stage of pipeline construction.
From incoming material inspection through installation, jointing, testing, backfilling, and final documentation, systematic inspection helps maintain construction quality and traceability.
Important quality-control activities include:
Maintaining proper inspection records helps establish traceability and provides documented evidence of construction quality.
==================================================
SAFETY IN PIPELINE LAYING WORKS
==================================================
Pipeline construction involves excavation, heavy lifting, welding, machinery operation, confined areas, and work near existing infrastructure.
Safety planning therefore needs to be integrated into every stage of construction.
Key safety practices include:
Safety should remain an integral part of planning, site execution, supervision, and project management.
==================================================
SURVEYING AND SETTING OUT
==================================================
Accurate surveying is critical for maintaining the designed pipeline route and levels.
Survey information guides the construction team during route marking, excavation, pipeline installation, structure construction, and final verification.
Survey activities may include:
Accurate survey information helps reduce construction errors and ensures that installation remains consistent with approved drawings.
==================================================
PIPELINE CROSSINGS
==================================================
Water pipelines may need to cross different types of existing infrastructure and natural features.
These crossings require careful planning because the construction methodology may differ from standard open-trench pipeline installation.
Common pipeline crossings may include:
Each crossing requires suitable construction methodology, protection measures, approvals, and coordination with relevant authorities.
==================================================
PIPELINE REHABILITATION AND MAINTENANCE
==================================================
Pipeline infrastructure requires attention not only during construction but also throughout its operational life.
Inspection and maintenance activities can help identify potential issues and support continued system reliability.
Maintenance activities may include:
Regular maintenance helps improve operational reliability and can contribute to extending the service life of water infrastructure.
==================================================
INTEGRATED PIPELINE INFRASTRUCTURE SOLUTIONS
==================================================
A capable pipeline infrastructure contractor should be able to coordinate multiple activities under one integrated execution system.
An integrated approach brings together pipeline, civil, mechanical, surveying, quality, and safety teams under coordinated project execution.
An integrated project scope may include:
MS Pipeline Works
→ DI Pipeline Works
→ HDPE Pipeline Works
→ Excavation
→ Bedding
→ Jointing
→ Welding
→ Testing
→ Backfilling
→ Valve Chambers
→ Pump Houses
→ RCC Works
→ Road Works
→ Fencing
→ Restoration
This integrated approach can improve coordination between civil, mechanical, pipeline, surveying, quality, and safety teams.
It also provides a structured approach for managing multiple interconnected activities within a major water infrastructure project.
==================================================
WHY PROFESSIONAL PIPELINE INSTALLATION MATTERS
==================================================
A pipeline is a long-term infrastructure asset.
Poor excavation, incorrect jointing, inadequate bedding, improper alignment, insufficient testing, or poor backfilling can create operational problems after construction is completed.
Professional pipeline execution focuses on:
The objective is to deliver pipeline infrastructure that performs reliably throughout its intended service life.
Professional execution also helps ensure that different construction activities are coordinated properly from initial survey and excavation through installation, testing, restoration, and completion.
==================================================
CONCLUSION
==================================================
Pipeline laying is a multidisciplinary infrastructure activity requiring expertise across engineering, civil construction, pipe installation, jointing, welding, surveying, testing, quality control, and safety.
The success of a pipeline project depends on how effectively these different activities are planned, coordinated, supervised, and executed throughout the construction process.
Whether a project involves large-diameter MS pipelines, DI transmission and distribution pipelines, HDPE water supply pipelines, or associated civil infrastructure, successful execution requires proper planning, skilled manpower, suitable equipment, quality materials, and disciplined site management.
From trench excavation and pipe laying to pressure testing, valve chambers, pump houses, RCC structures, road restoration, fencing, and protective works, every activity contributes to the overall reliability of the water infrastructure system.
A professionally executed pipeline network provides the foundation for dependable water transmission and distribution while supporting long-term infrastructure performance, operational efficiency, and sustainable water supply.
==================================================
